Henry H001 Sight

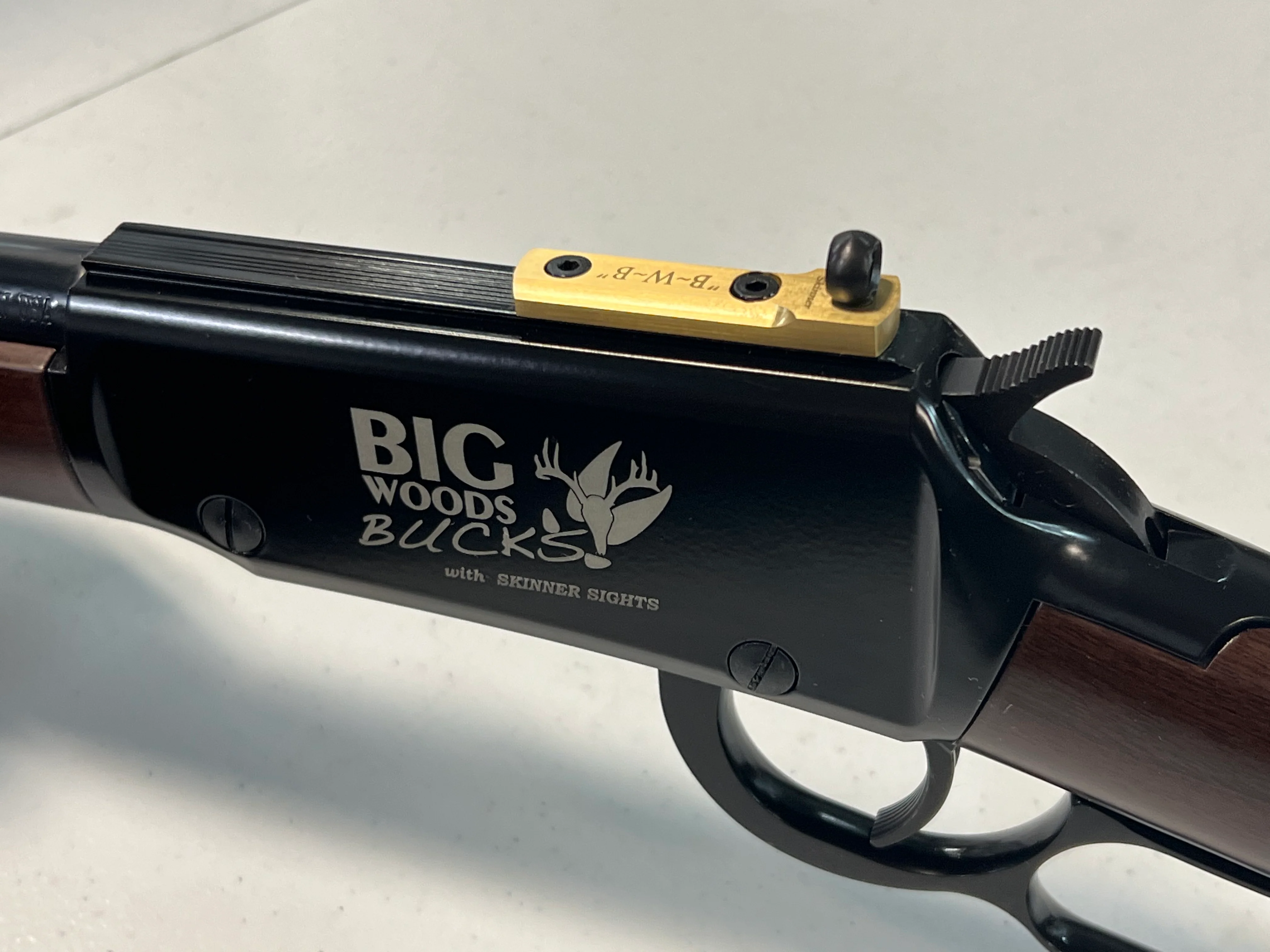

SKINNER SIGHTS is now offering a SLIM, TRIM, AND BEAUTIFUL sight for the HENRY H001 and H003 series Rimfire rifles.

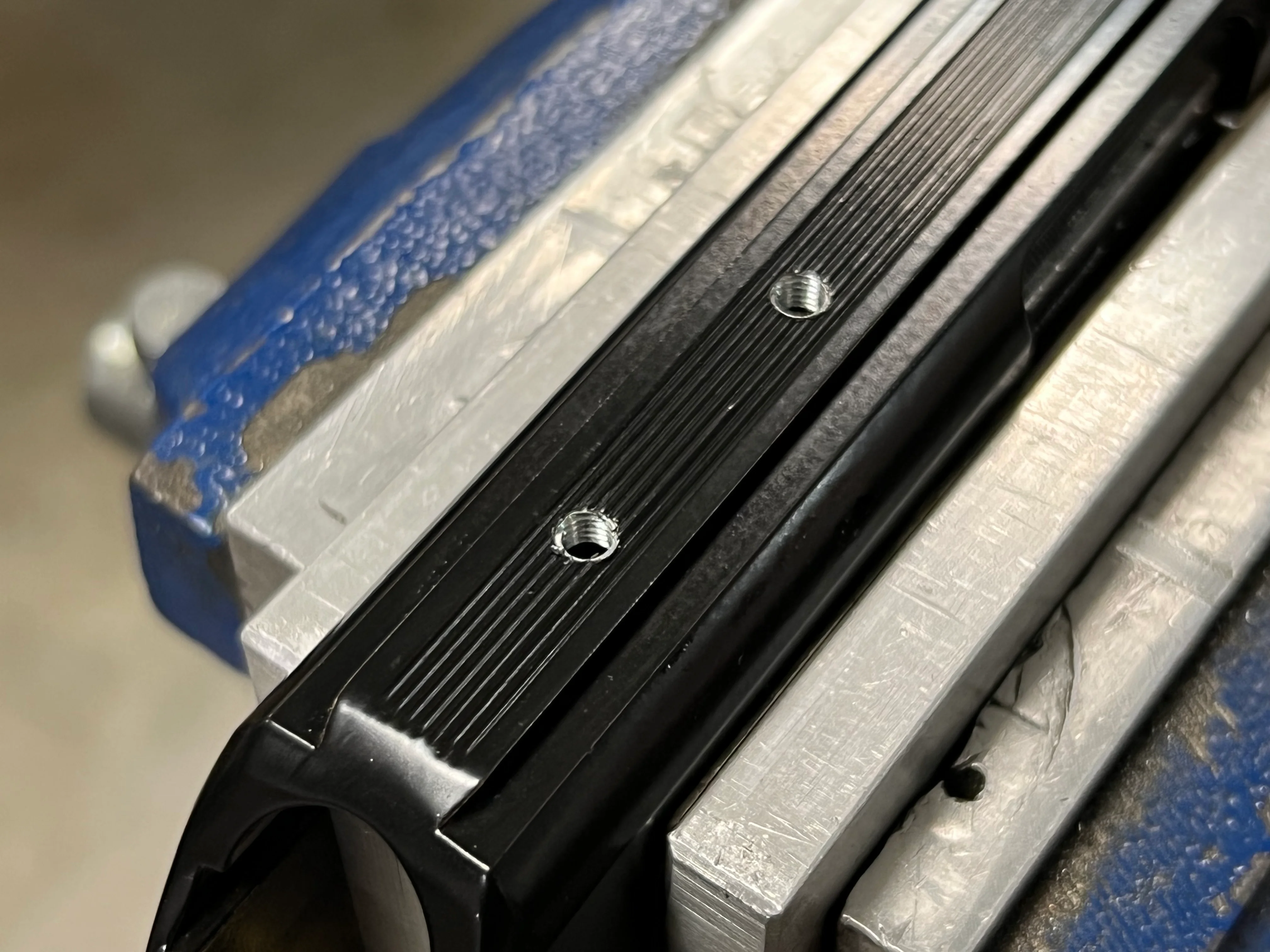

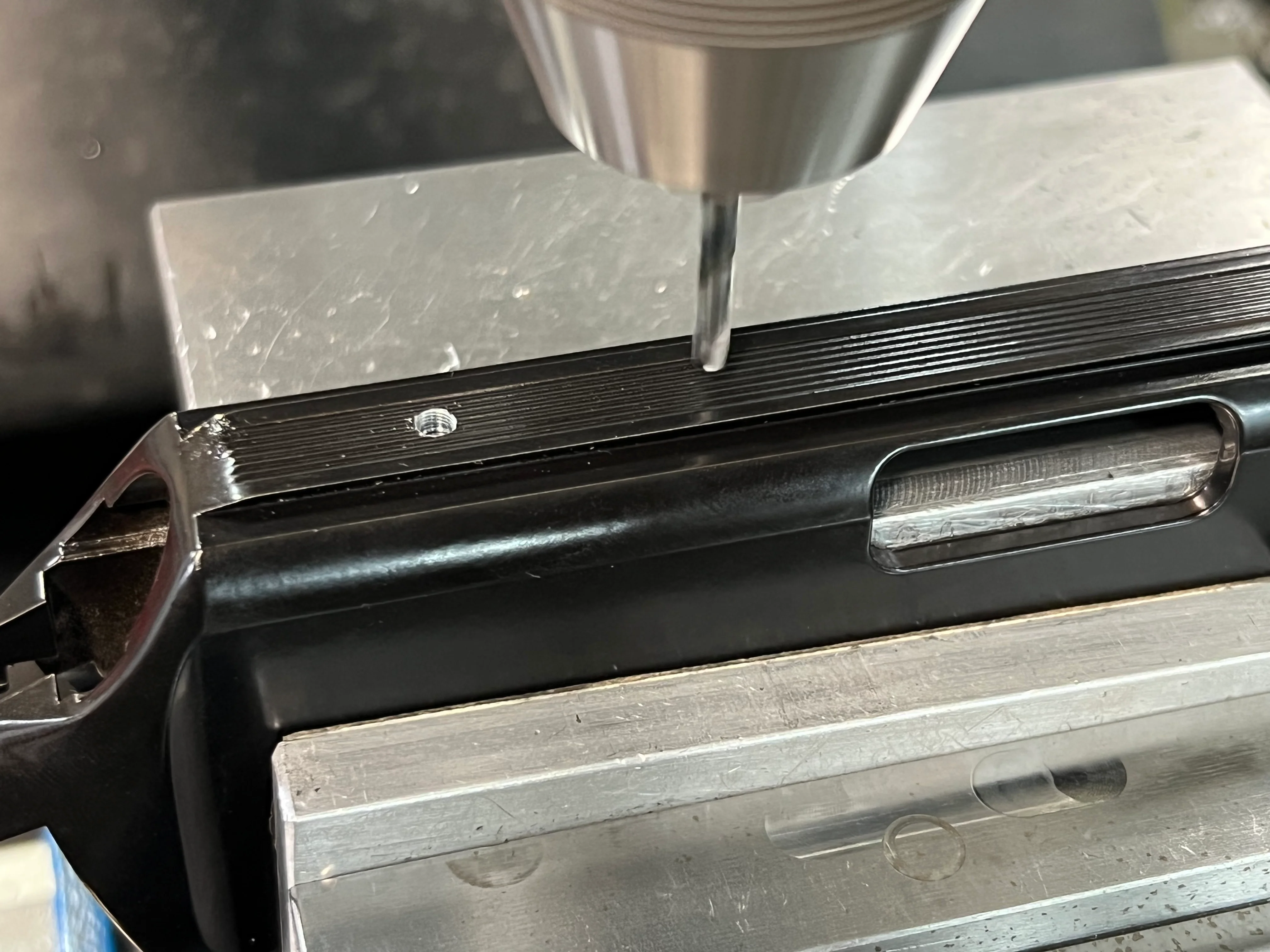

This sight requires drilling and tapping two 8-40 holes 1" C-C in the receiver cover.
Fully Adjustable for windage and elevation, this sight sits .080" lower than our RIMFIRE Groove mounted sight. Consequently, there is a good chance (cannot guarantee for the reasons listed on our FAQ page) that it will work with your factory front sight.
Mounting screws and wrenches included. Sight ships with a .096" aperture installed. Accepts all 5 sizes of Skinner Apertures.
This is the same sight we make for Henry for factory installation on the Henry H001 Small Game Carbines and Rifles.
Can be installed by the advanced hobbyist, amateur gunsmith, or...
Send it to me and I will put it on for you. (see instructions below)

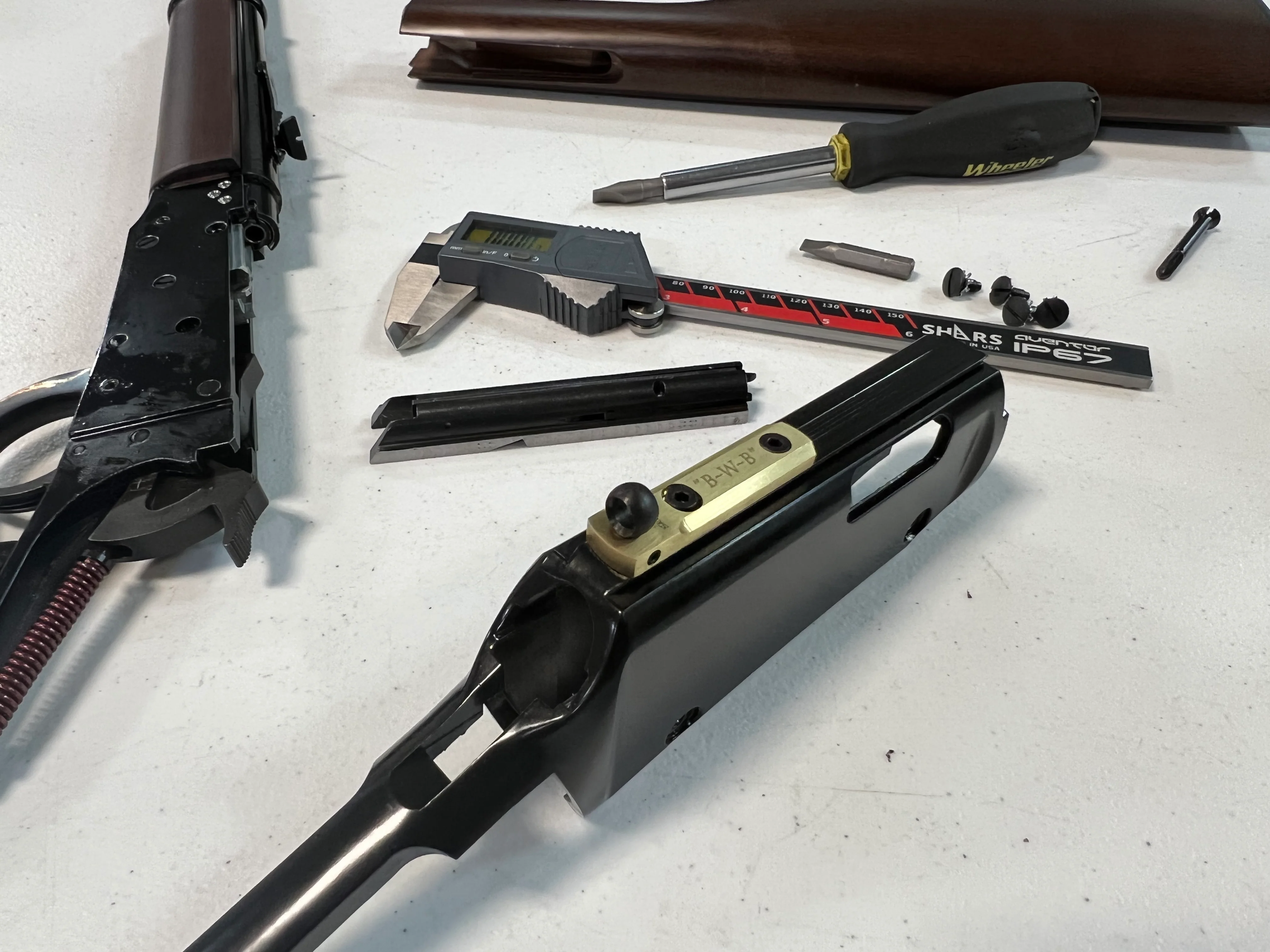

Directions for Cover Removal:
1. Be sure the rifle and magazine are unloaded and pointed in a safe direction.
2. Remove the rear tang screw allowing butt stock removal.
3. Remove the four large headed screws on each side of the receiver cover.
(Use a carefully fit screwdriver tip and be careful to not scratch the receiver finish)
4. Cock the hammer.
5. Lift the cover up and to the rear, sliding it off of the rifle.
6. Carefully wrap the receiver in a padded wrap and ship using a cardboard box.
7. Send it to:
Skinner Sights LLC, P.O. Box 1810, St. Ignatius, MT 59865
(Please include a check or money order with the receiver cover. Include the price of the sight plus $40 for drill and tapping, $17.50 Return shipping.)
